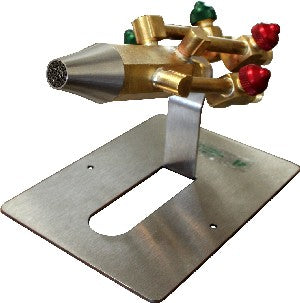

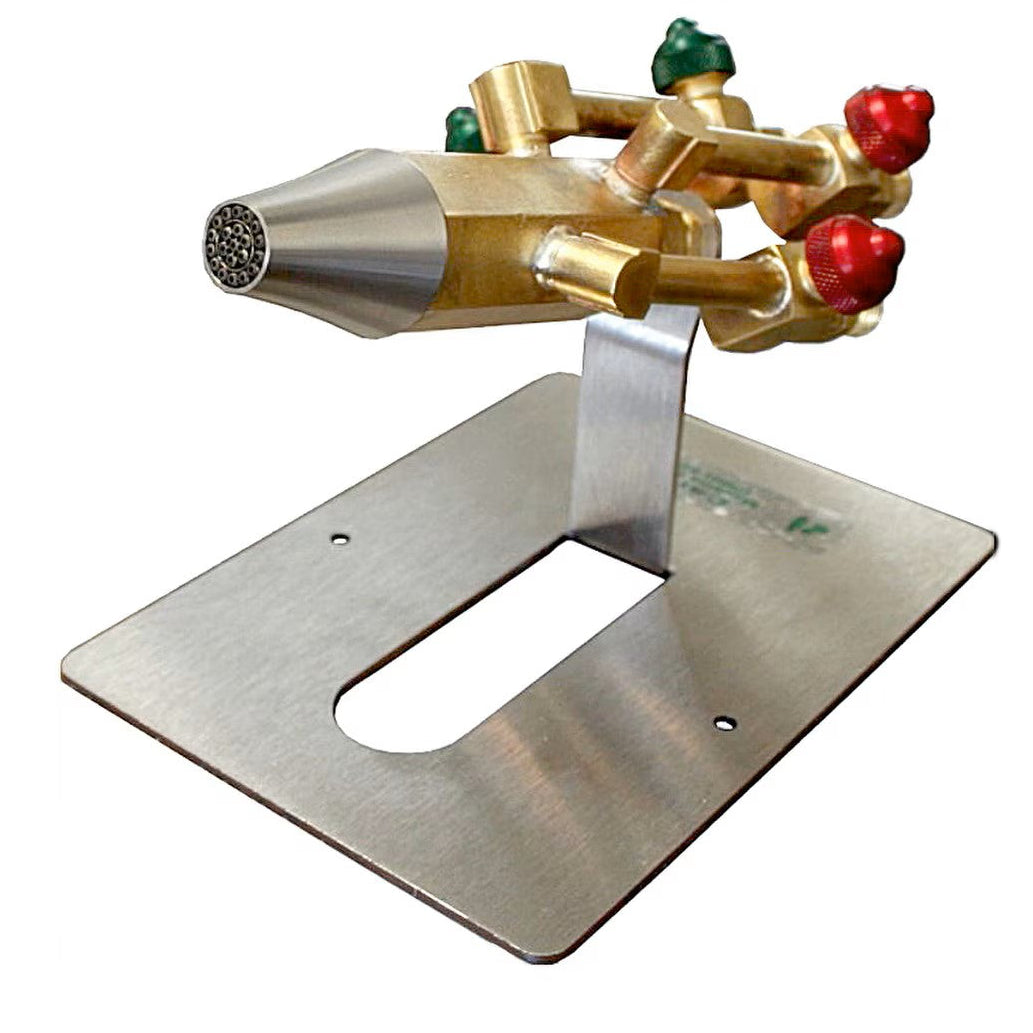

Hell Cat Torch by Carlisle Machine Works

The Carlisle Hellcat is a totally surface mixed 4 inlet
burner that offers a high level of versatility in the flame.
This wide range of flame capabilities makes the Hellcat
the perfect bench burner for beginners and experts alike.
The Hellcat Bench Burner is suited for use with both hard
and soft glass. It has been designed for increased
productivity, attainable through higher flame
temperatures and increased flow capabilities of gases.
The center fire of the Hellcat is exactly the same as the
Mini CC, Seven tubes, then using the outer two adjusting
knobs you enable 14 more tubes to give you a much
broader range of heat to work with.
The body of the Hellcat is constructed of brass and has a
stainless steel nose cone to help the torch run cooler and
prevent heat build-up. The tube matrix, which is
constructed of seven tubes in the center and 14 tubes on
the outer fire, is made of stainless steel. The stand itself is
the same one used on the Mini CC which is designed for
ease of use and places the burner head at a 45° angle.
The connection of the body to the stand is made with a
ball joint, allowing for an increased or decreased tilt of
15° and articulation. This allows the burner to have
excellent positioning capabilities. The base also has four
rubber feet to reduce the likelihood of the unit from
sliding during use and features two mounting holes for
permanent installations.
Consumption based on standard usage is approximately
1.5 LPM (Liters Per Minute) of propane and 7 LPM of
oxygen on the center fire only. With both inner and
outer fires, 4.5 LPM of propane and 21 LPM of oxygen.
This burner may be used with oxygen and either natural
gas, propane, or even hydrogen. The recommended
operating pressures are 2-3 PSI (Pounds per Square Inch)
for fuel gas and 5 PSI for oxygen. Produces approximately
9720 Btu’s.
