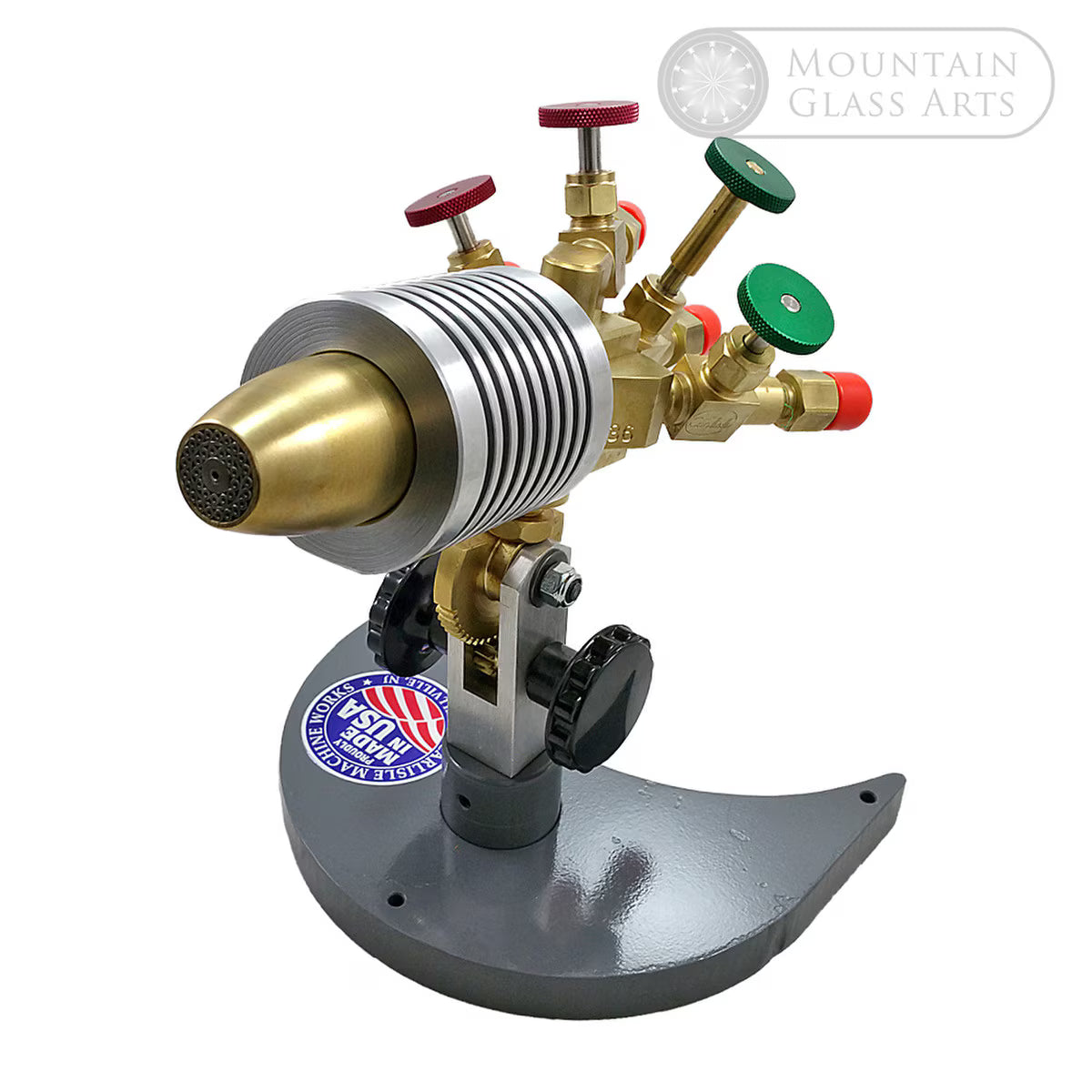

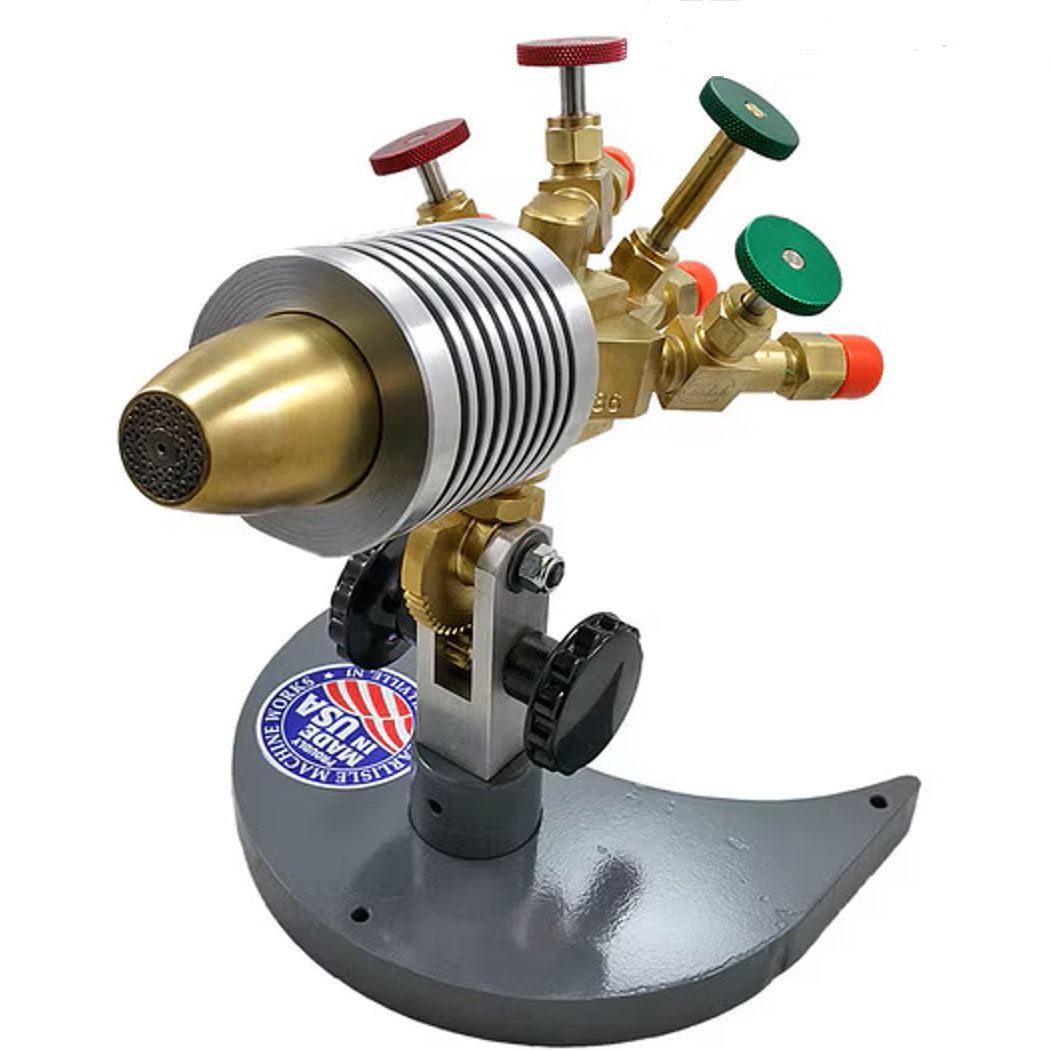

The Carlisle CC and CC “Plus” Burners are known as cannon style
burners. Their large nose cone and tremendous flame output
resembles the profile of a “cannon”. These burners may be used with
a mixture of oxygen and either natural gas, propane, or hydrogen
(different tips are suggested depending on the gas used).
Both burners produce two distinctive flames, the centerfire (premixed) and the outer fire (surface mixed). The centerfire, which has
characteristics of a single ported tip, produces a pre-mixed flame
similar to what may be achieved with a Carlisle hand torch. There are
three types of centerfire tip. The first is the #5 centerfire tip.

NOTE: The CC burner will produce 95,000 Btu’s @ 5 psi natural gas

The nose cone of the CC is manufactured from brass (stainless steel optional). The brass cone is threaded onto a machined mixer body. For fuel gas and oxygen supply, four metering valves are attached to the back of the mixer body. These valves are color coded for ease of use. The oxygen valves have green handles while the gas valves have red handles. On a standard CC these valves are interconnected by crossover attachments to limit the feed hose requirements to two. The CC series is also available with four separate inlets to allow for the use of foot controllers. The standard hose connections for this configuration are welding hose “B” fittings. Other connection types are available such as hose barbs and JIC connections. Please contact us for special orders with alternate connectors.
